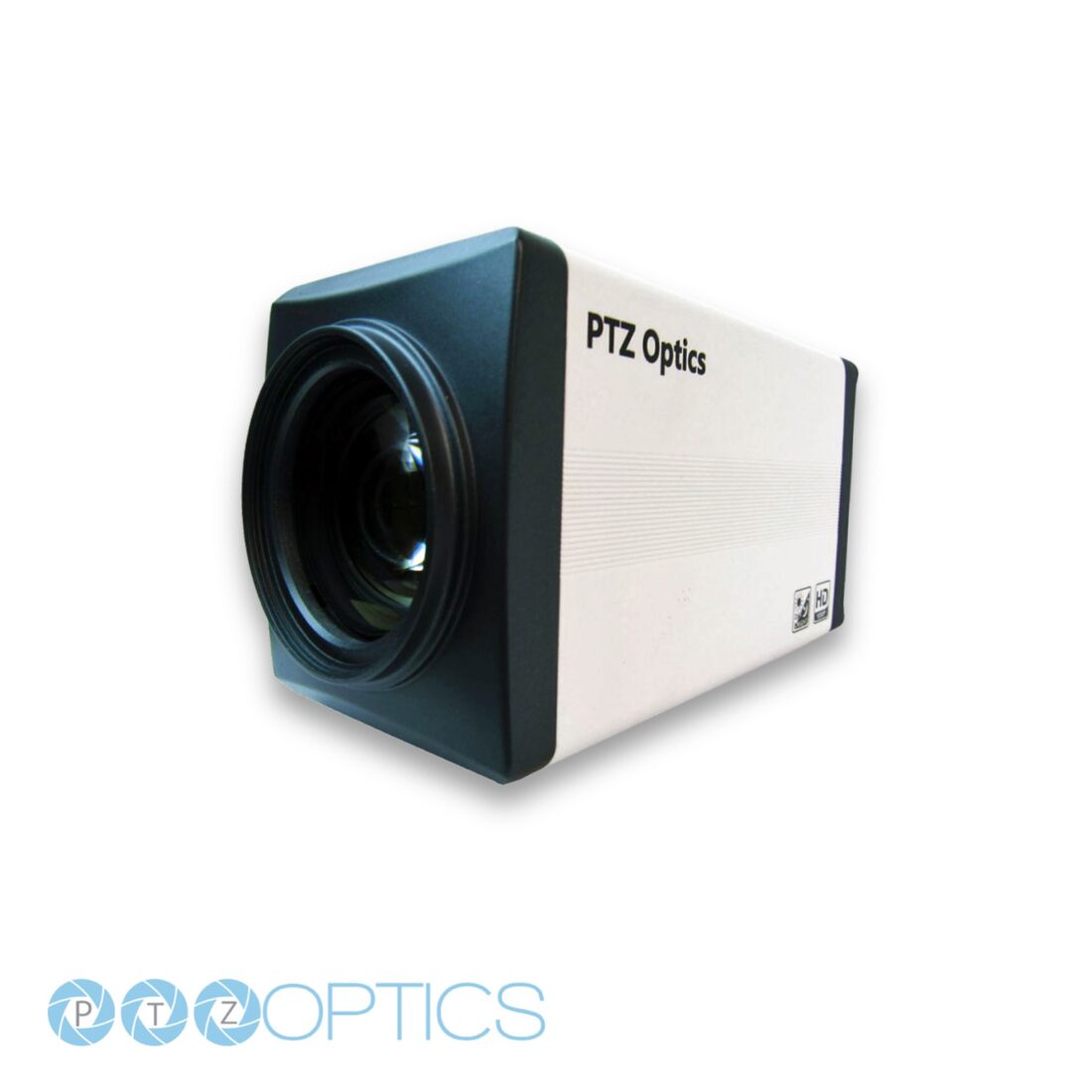

Description Key Features of PTZOptics PT20X-ZCAM-G 1080p ZCAM Box Camera Panasonic 1/2.7” HD CMOS Sensor 3G-SDI High Definition Video Output H.264, H.265 & MJPEG IP streaming output (dual stream) AAC stereo unbalanced Audio Encoding over IP High performance in low light scenarios Full 1920x1080p HD Resolutions up to 60 frames per second via SDI 2D & 3D noise reduction with PTZOptics latest “low noise CMOS sensor” Wide Dynamic Range Menu controls on back of camera RS485 and IP remote camera control 60.7° Field of View Std 1/4-20 female thread for camera mounting (bottom) PoE (Power over Ethernet) Hold left on Menu Navigation button for 5 seconds to toggle Dynamic or Static IP addressing 3-year warranty Photobooth capable Camera & Lens Native Resolution: Full HD 1080p (1920 x 1080) Video CMOS Sensor: 1/2.7” CMOS, 2.07 Mega Pixels Frame Rate: 1080p-60/50/30/25, 1080i-60/50, 720p-60/50 (IP Stream limited to 30 fps) Focal Length: F=4.42mm ~ 88.5mm, F1.8-F2.8 Lens Optical Zoom: 20x Min Lux: 0.05 Lux at F1.8, AGC ON Shutter Speed: 1/25s – 1/10000s SNR: ≥55dB Vertical Flip & Mirror: Supported Horizontal Angle of View: 3.4° (tele) to 60.7° (wide) Vertical Angle of View: 1.9° (tele) to 34.1°(wide) Power Power Supply: 12W – 1A Input Voltage: PoE Class 3 – 802.3af or 12V DC (10.8 – 13.0V DC) General Weight: 0.63 kg Dimensions (W x H x D): 79 x 74 x 145 mm Box contents 20X Zoom 3G-SDI Camera Power Adapter PT20X-ZCAM Data Sheet PT20X ZCAM User Manual Remember – if you need help or advice that’s what we’re here for
