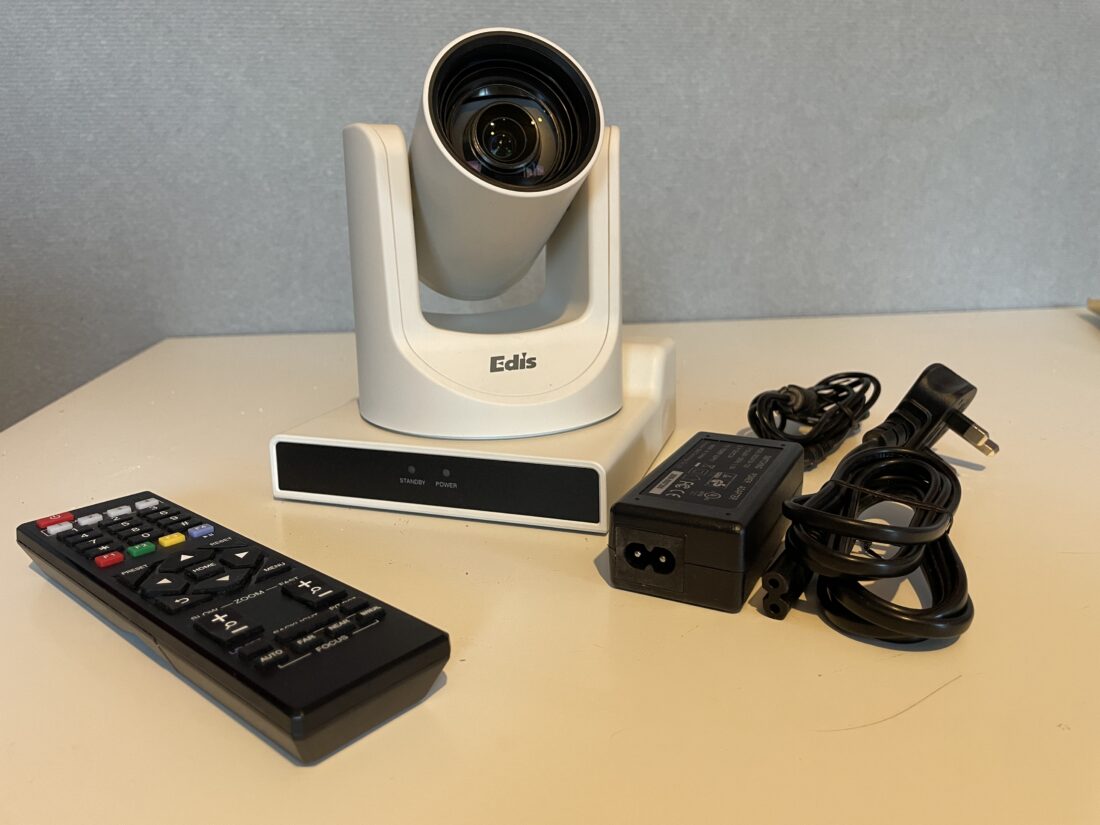

Description Specifications: Camera Video System HD: 1080p/60, 1080p/50, 1080i/60, 1080i/50, 1080p/30, 1080p/25, 720p/60, 720p/50, 720p/30, 720p/25, 640x480p/240(Only IP port support) Video System SD: 480i, 576i Sensor: 1/2.8”, CMOS, Effective Pixel: 2.07M Scanning Mode: Progressive Lens: 12x, f3.5mm ~ 42.3mm, F1.8 ~ F2.8 Digital Zoom: 16x Minimal Illumination: 0.5 Lux @ (F1.8, AGC ON) Shutter: 1/30s ~ 1/10000s White Balance: Auto, Indoor, Outdoor, One-Push, Manual, VAR Backlight Compensation: Support Digital Noise Reduction: 2D&3D Digital Noise Reduction Video S/N: ≥55dB Horizontal Angle of View: 72.5° ~ 6.9° Vertical Angle of View: 44.8° ~ 3.9° Horizontal Rotation Range: ±170° Vertical Rotation Range: -30° ~ 90° Pan Speed Range: 1.7° ~ 100°/s Tilt Speed Range: 1.7° ~ 69.9°/s H & V Flip: Support Image Freeze: Support PoE (Power over Ethernet): Supported Local USB Recording: Supported Number of Preset: 255 Preset Accuracy: 0.1° IPC Features Video: H.264/MJEPG Video Stream: Main Stream, Sub Stream Main StreamResolution: 1920×1080, 1280×720, 1024×576 etc. Sub Stream Resolution: 720×576, 720×480, 320×240 etc. Video Bit Rate: 32Kbps ~ 20480Kbps Bit Rate Type: Variable Rate, Fixed Rate Frame Rate 50Hz: 1fps ~ 50fps Frame Rate 60Hz: 1fps ~ 60fps Frame Rate 720p120: 120fps Audio: AAC Audio Bit Rate: 96Kbps, 128Kbps, 256Kbps Support protocols: TCP/IP, HTTP, RTSP, RTMP, Onvif, DHCP, Multicast, etc. Input/Output Interface HD HDMI Output: 1 x HDMI, Version 1.3 HD SDI Output: 1 x 3G-SDI BNC type, 800mVp-p, 75Ω, Along to SMPTE 424M standard SD Output: 1 x CVBS: 3.5mm mini jack, 1Vp-p, 75Ω Network Interface: 1 x RJ45 10M/100M Ethernet Interface with PoE Audio Interface: 1-ch: 3.5mm Audio Interface, Line In USB: 1 x USB 2.0 Type A female Communication Communication Interfaces: 1 x RS232 In: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA/Pelco-D/Pelco-P; 1 x RS232 Out: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA network use only; 1 x RS485: 2pin Phoenix Port, Max Distance: 1200m, Protocol: VISCA/Pelco-D/Pelco-P; Power Jack: JEITA type (DC IN 12V) Generic Specification Input Voltage: DC 12V / POE (802.3af) Current Consumption: 1.0A (Max) Operating Temperature: -10°C ~ 40°C StorageTemperature: -40°C ~ 60°C Power: 12W (Max) Size: 146mm x 152mm x 164mm Net Weight: 1.35Kg Remember – if you need help or advice that’s what we’re here for  Edis V61CL Datasheet
