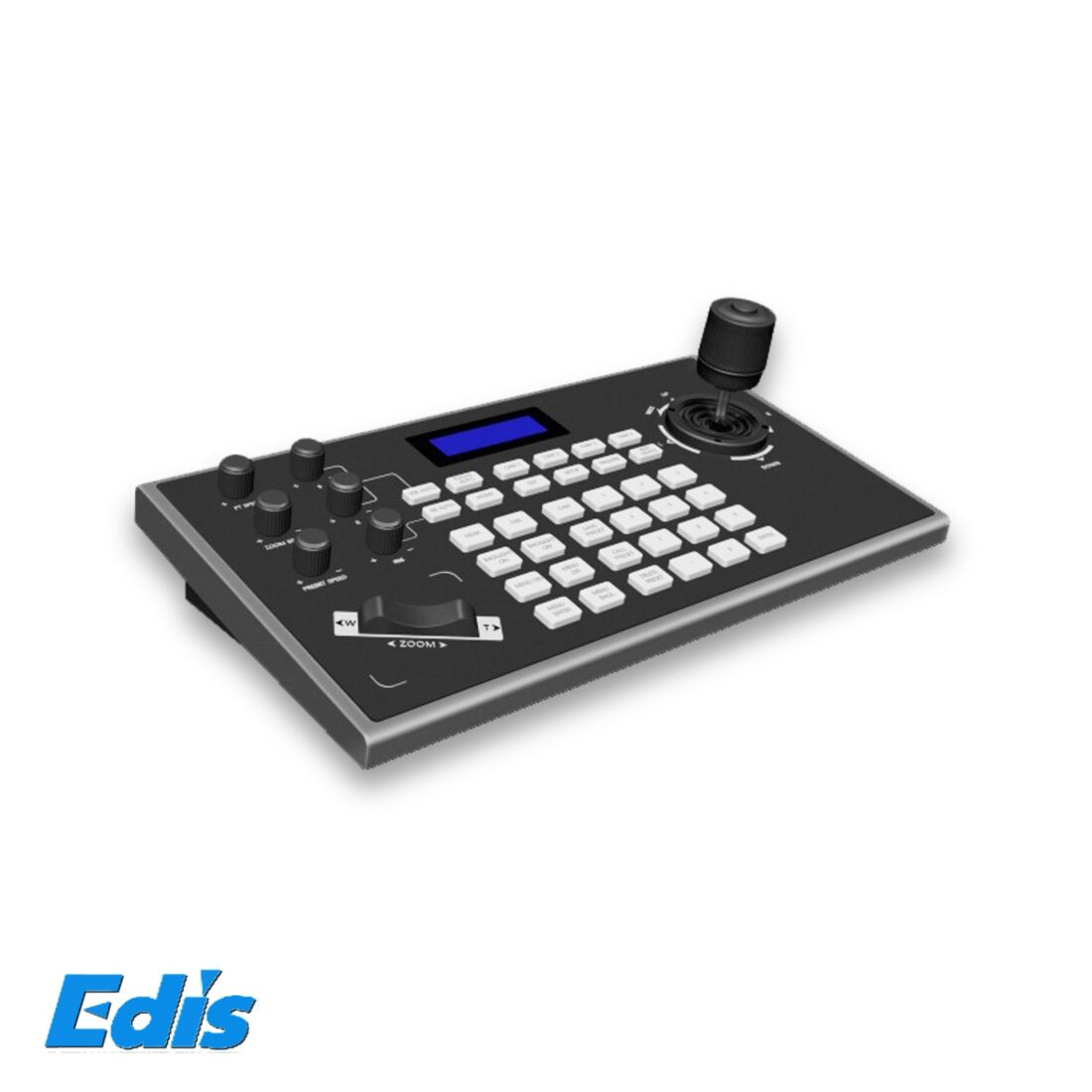

Description The Edis K50 includes imported variable speed four-dimensional rocker for a smoother and comfortable control. The twisting rocker can control zoom in and out and can also directly control the omnidirectional rotation of the conference camera. According to the strength setting on the joystick, the speed can be controlled easily. The zoom control of the conference camera is carried out by a tactile rocker switch enabling a convenient and powerful operation. The Joystick also features a full-key backlight LCD Display, the backlight can be turned on / off independently. Use your browser to send configurations such as front-end device parameters. Specifications of Edis K50 PTZ Camera Controller Joystick Protocols: VISCA, VISCA over IP, Onvif, Pelco-D, Pelco-P Max. Connections Onvif / VISCA over IP: 110 Max. Connections RS485: 255 (Pelco-D/P) Max. Connections RS422: 7X2(VISCA) Max. Connections RS232: 7(VISCA) Interfaces: 1 x RS232, to control camera, 30 Metres Distance | 1 x RS485 / RS422, to control camera, 1200 Metres Distance |1 x RJ45, PoE Supported | 1 x USB2.0 | 1 x DC12V Display Mode: LCD with Backlight (Can be switched off) Input Voltage: Power supply; DC 12V / PoE (802.3af) Input Current: 0.5A (max) Power Consumption: 0.6W (max) Working Temperature: 0°C ~ 55°C Storage Temperature: -10°C ~ 60°C Dimension: 320 x 177 x 115.5 mm Net Weight: 1.74 Kg Edis K50 Joystick DataSheet Remember – if you need help or advice that’s what we’re here for
