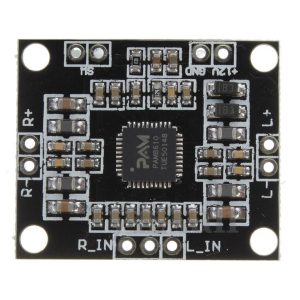

PAM8610 12V Two-channel Stereo Mini Class-D 10W 10W Audio Amplifier
$52.32
$81.1
Description The PAM8610 is a 10 10 watt stereo Class-D audio amplifier with DC Volume Control which offers low THD N (0.1%), low EMI, and good PSRR thus high-quality sound reproduction. The PAM8610 runs off of a 7V to 15V supply at much higher efficiency than competitors’ ICs. Features 10W @ 10%THD/Channel Output into a 8Ω Load at 13V Low Noise: -90dB Over 90% Efficiency With Shutdown/Mute/Fade Function Over Current , Thermal and Short-Circuit Protection Low THD N Low Quiescent Current Pop Noise Suppression Small Size Applications Bluetooth Stereo Audio hands free / headsets In robots that speak or generate sounds to indicate activities Portable Speakers LCD Monitors / TV Projectors Arduino or Raspberry Pi Game Machines Speaker Phones Technical Specifications Model: PAM8610-AOC1 Operating Voltages: 7V to 15V (Nominal : 12v) Features: Mini amplifier board with compact size, high output power and HD audio. Amplifier IC: PAM8610 Load : Can direct drive 4 or 8 ohm small speakers Output Power: 10Wx2(8Ω) 15Wx2(4Ω) – heatsink should be installed for higher wattage output Dimensions: 1.18 in x 1.00 in x 0.12 in (3.00 cm x 2.52 cm x 0.3 cm) Weight: 3.0g (aprox without headers) Documents and Downloads PAM8610 IC Datasheet Related products Heatsink (not included with amplifier module) Headers (Not included with amplifier module) Package Includes 1x PAM8610 Mini amplifier board
