Multi IC Adapter PCB for 0.65MM or 1.27mm Pitch ICs – Upto 28 Pins

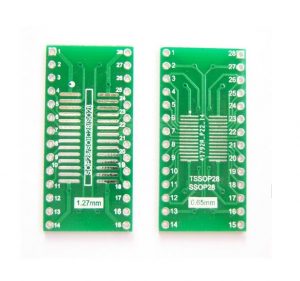

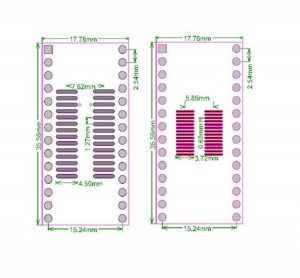

Description This is a double side Adapter PCB that can accept 0.65mm pitch ICs on one side and 1.27mm pitch ICs on other side. The pcb can let you solder your SO/SSOP/SOIC/MSOP/TSSOP28 or TSSOP20 packages using standard 0.1 inch header for use on Breadboard or Perforated boards. The Adapter PCB is perfect for quick prototype and testing of fine pitch ICs when you don’t want to invest into costly high density pcb manufacturing. Technical Specifications IC Package Pin Pitch: 0.65mm (on one side) and 1.27mm (on other side) Header Pin Pitch: 2.54mm (0.1in) Pin Numbers Text: Yes on Top and Bottom side for every pin Adapter PCB Size: 35.5mm (L) x 20.35mm (W) Adapter PCB Thickness: 1.6mm Bare Adapter PCB weight: 2.2g PCB Color : Green Acceptable Packages: SO/SSOP/SOIC/MSOP/TSSOP28 or TSSOP20   Supported IC Packages Pitch 0.65mm Suitable for upto 28 pin IC packages Pitch 1.27mm Suitable for upto 28 pin IC packages Pitch 2.54mm Suitable for Breadboad,directly Plug in Breadboad / Perforated Board.   Package Includes 1x 28-pin Adapter PCB
