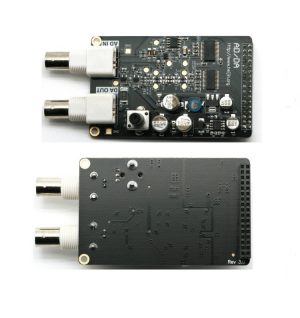

High Speed 8bit 32MSPS AD and 125MSPS DA Module – AN108
$61.85
$113.19
Description High Speed 8bit Parallel Interface 32MSPS AD and 125MSPS DA Module for Software Defined Radio, High Speed Data Acquisition and for FPGA Experiments. This AD/DA Board is compatible with Alinx Spartan 6 AX309 FPGA Development Board. Technical Specifications Operating Voltage: 5.0V ADC Max Data Rate: 32MSPS DAC Max Data Rate: 125 MSPS Internal Oscillator: No ADC Interface Type: 8-Bit Parallel DAC Interface Type: 8-Bit Parallel No of Analog Inputs: 1 No of Analog Outputs: 1 Mechanical Dimensions: 102.5mm (L) x 51mm (W) x 25mm (H) Header Pin Pitch: Standard 2.54mm / 0.1-inch Weight: 40g Compatible with ALINX AX309 Spartan-6 FPGA Board Documents and Downloads AD9280 ADC Device Support Page for datasheet TXDAC-9708 / AD9708 DAC Device Support Page for datasheet Package Includes 1x High Speed 8bit 32MSPS AD and 125MSPS DA Module for FPGA Development
