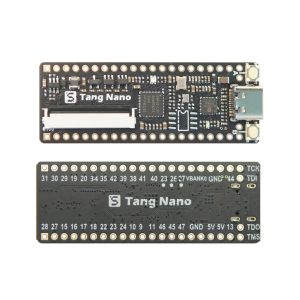

Description Tang Nano 1K is a low cost core board based on Gowin GW1NZ-LV1 FPGA chip. The board is equipped with RGB LCD interface and onboard USB-JTAG debugger, which make it convenient for users to program and debug without requiring expensive USB JTAG debugging tools. Features FPGA Chip Part Number: GW1NZ-LV1 FPGA Logic units: (LUT4) 1152 Register(FF) 864 Block SRAM(bits): 72K Number of B-SRAM: 4 User flash(bits): 64K Number of Clock Pll: 1 Number of I/O Banks: 2 Documents and Downloads GW1NZ-LV1 FPGA Datasheet Tang Nano 1k Schematics Tang Nano 1k Mechanical Drawing (for dimensions) Tang Nano Examples Tang Nano LED and Button Example tutorial GOWIN EDA Download (software is free but requires registration) Package Includes 1x Tang Nano 1K (GW1NZ-LV1) FPGA Board 2x 21Pin Male-Male Headers
