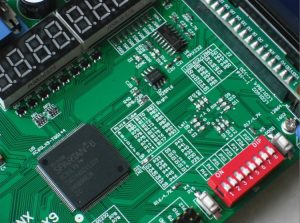

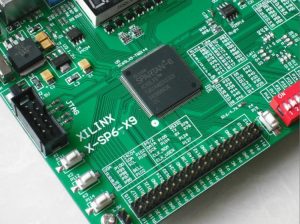

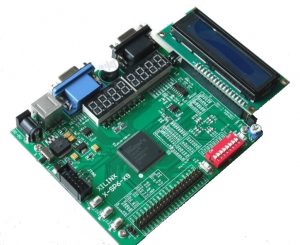

Description Spartan 6 FPGA Board provides a powerful and highly advanced self-contained development platform for designs targeting the Sixth Generation Spartan 6 FPGA from Xilinx. It features, dual-register six-input LUT logic structure, 9152 logic elements, 589,824 Bits of RAM, and a 32 bit RISC processor. The sixth generation in the Spartan FPGA Series enables system developers to meet demands for new features, while at the same time reducing system costs by up to half for lower-power, ”greener” products. Supporting applications such as automotive infotainment, flat-panel displays, multi-function printers, set-top boxes, home networking, and video surveillance, Spartan-6 FPGAs offer an optimal balance of low risk, low cost, low power, and high performance. Technical Specifications Major Components Xilinx Spartan 6 FPGA (9152 logic elements) Onboard I2C serial EEPROM 24C04 (IIC bus to do experiments) MAX232 serial communication tranceiver 50 MHz Oscillator 8x 7 Segment LED Display 12x LED light-emitting diode 5 independent keys Analog Potentio Meter (LCD Contrast Adjustment) Buzzer H/W Interfaces 20×2 / 40 pin Standard Male Header for FPGA IO DB15HD VGA PS/2 keyboard 1x DB9 RS-232 connector 20-pin header for 16×2 / 1602 Character LCD modules or 128×64 Graphic LCD module Land pattern for User Oscillator Standard 5×2 Pin JTAG Shrouded Header Programming Options JTAG Programming with parallel or USB JTAG Cable (Parallel Port JTAG or USB JTAG Cable /Programmer is not included) Documents and Downloads Spartan 6 FPGA Development Board’s Support Package (includes verilog, vhld examples, user manual, schematics files). To unzip .rar file please use 7zip software Spartan-6 XC6SLX9 Device Datasheet For reference designs and documentation, please visit Xilinx’s Spartan 6 support page. In order to program and communicate with the Spartan 6 FPGA board, you must download and install the free Xilinx ISE webPACK software. Package Includes 1x Spartan 6 FPGA Development Board – XC6SLX9-TQG144 1x USB Power Cable 4x Metal Standoffs 4x Screws [!] Note: 16×2 / 1602 LCD is not included in the package Cash On Delivery Xilinx Spartan 6 FPGA Development Board in Pakistan, FPGA Board Spartan 6 XC6SLX9-TQG144 in Pakistan
