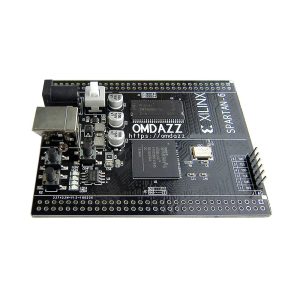

Spartan 6 FPGA Core Board with 256MBit SDRAM – XC6SLX16-FTG256

Description Spartan 6 FPGA Core Board provides a powerful and highly advanced self-contained development platform for designs targeting the Sixth Generation Spartan 6 FPGA from Xilinx. It features, dual-register six-input LUT logic structure, 14579 logic elements (XCSLX16 has 5427 more logic elements than XC6SLX9 FPGA), 589,824 Bits of RAM, and an on chip 32 bit RISC processor. The sixth generation in the Spartan FPGA Series enables system developers to meet demands for new features, while at the same time reducing system costs by up to half for lower-power, ”greener” products. Supporting applications such as automotive infotainment, flat-panel displays, multi-function printers, set-top boxes, home networking, and video surveillance, Spartan-6 FPGAs offer an optimal balance of low risk, low cost, low power, and high performance. The standard 0.1in spaced headers allow Spartan-6 FPGA core board to be easily used with perforated / strip boards. Applications Image or video processing system High performance computing (parallel processing) Communications system Medical Electronics ASIC prototyping Consumer Electronics. Digital Display Controller Re-implementing or Enhancing Obsolete CPUs / Microcontrollers (such as 8086, Z80, 8051, etc) Technical Specifications Major Components Xilinx Spartan 6 FPGA (9152 logic elements) Onboard 256MBit (16MB x 16) SDRAM – 48LC16M16A2 On board M25P80 Serial Flash Embedded Memory 50 MHz Oscillator 4x LED light-emitting diode 3 push buttons 108 User IO pins (available through U7 and U8 headers) M2359 5V to 3.3v / 1.2A Switch mode regulator NCP1529 1.2v / 1A Core voltage Regulator H/W Interfaces 1x 32×2 (64) pins expansion header for single ended gpio 54 GPIO pins 10 Power pins 1x 32×2 (64) pins expansion header for differential signals gpio (ios can be used as single ended signals as well) 54 Single Ended GPIO (or 27 pair differential IO) pins 10 Power pins 1x 6pin JTAG Header Programming Options JTAG Programming with USB JTAG Cable (USB JTAG Cable / Programmer is not included)   Documents and Downloads Schematic Schematic of Spartan 6 FPGA Core Board with 16MB SDRAM – XC6SLX16-FTG256 Datasheets Spartan-6 Device Datasheet MP2359 3.3V/1.2V Regulator Datasheet NCP1529 1.2v / 1A Core voltage Regulator Datasheet M25P80 Datasheet Other Support files and links For reference designs and documentation, please visit Xilinx’s Spartan 6 support page. In order to program and communicate with the Spartan 6 FPGA board, you must download and install the free Xilinx ISE webPACK software. Download Test codes Package Includes 1x OMDAZZ Spartan 6 FPGA Core Board with 16MB SDRAM – XC6SLX16-FTG256 (Tested / QC-OK)
