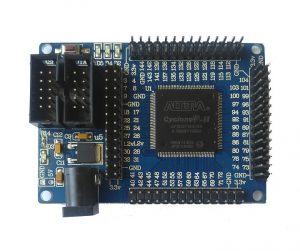

Altera Cyclone II EP2C5T144 FPGA Mini Development Board – FZ0697

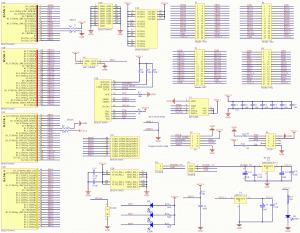

Description This FPGA Development board uses ALTERA CycloneII EP2C5T144 chip. The FPGA Board can easily be embedded into user’s application. Applications include from simple logic control, data acquisition, signal processing, to mathematical calculation functions. Features On board 3.3V and 1.2V Regulators Single Power 5VDC operation On board Clock Oscillator On board Configuration storage EEPROM 3x LED indicators for user 1x Power Indicator LED Reset Switch All IOs of the FPGA chip borught out on headers. High Quality PCB Technical Specifications FPGA Chip: Altera Cyclone II, EP2C5T144C8N FPGA chip has 4068 logic elements Multiple 4k RAM blocks giving a total of 119,898 bits 13 multipliers Two PLLs 89 I/Os Maximum clock frequency is 300 MHz. FPGA Core Voltage : 1.2V FPGA IO voltage : 3.3V Size : 6 (cm) * 8 (cm) Configuration EEPROM chip: 4Mbit EPCS4 Oscillator Frequency: 50MHz Panel power indicator and reset switch Onboard 3 SMD LED All IO ports and clock pin through the pin leads, through any of these interfaces can be extended memory and peripherals Support for the development of embedded CPU NiosII Documents and Downloads Altera Quartus II Web Edition FPGA development Software – Download here Altera Cyclone II Family FPGA Datasheet Altera Cyclone II Handbook Altera Cyclone II EP2C5T144 FPGA Mini Development Board – FZ0697 Schematics Related Tools Altera USB Blaster (Compatible) Mini Programmer Debugger Package Includes 1x Altera Cyclone II EP2C5T144 FPGA Mini Development Board – FZ0697
