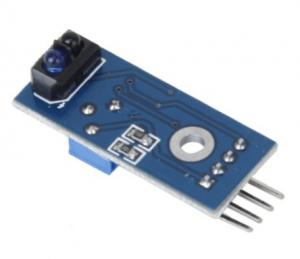

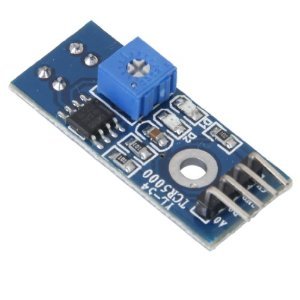

Description Infra Red Line Sensor Module based on I.R. Sensor TCRT5000L. The module also has Sesnitivity Adjustment Pot, and LED indicators for Power, and an LED indicator for Detection. Module can be easily mounted to Robot Chassis using Mounting Hole. Features Analog Output (0 – VCC) Digital Output (Logic 0, Logic 1) Operates on either 3.3V or 5V (3V to 5.5V) LED Indicator for Power LED Indicator for Detection Sensitivity Adjustment through on board Potentiometer Mounting Hole for mounting sensor easily on Robot Chassis. Technical Specifications Detection Distance: 0 – 3cm (30mm / 1.18″) Operating Voltage:3 – 5.5V Size : 30mm x 15mm / 1.18”x0.59” Comparator IC: LM393 IR Sensor: TCRT5000L Pinouts VCC (3V-5.5V) GND (0V) DO (Digital Output) AO (Analog Output) Related Documents TCRT5000L Sensor Datasheet LM393 Comparator IC Datasheet Package Includes 1x Line Sensor Module – TCRT5000L
