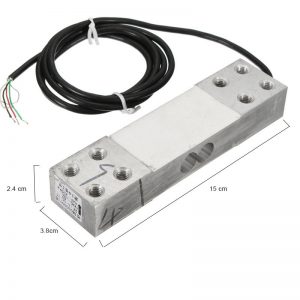

Description This straight bar load cell (also called a strain gauge) can translate up to 200kg of pressure (force) into an electrical signal. Each load cell is able to measure the electrical resistance that changes in response to, and proportional of, the strain (e.g. pressure or force) applied to the bar. With this gauge you will be able to tell just how heavy an object is, if an object’s weight changes over time, or if you simply need to sense the presence of an object by measuring strain or load applied to a surface. This straight bar load cell is made from an aluminum-alloy and is capable of reading a capacity of 200kg. These load cells have four strain gauges that are hooked up in a wheatstone bridge formation. The color code on the wiring is as follows: red = E , green = O , black = E-, and white = O-. Additionally, these load cells offer an IP66 protection rating and feature two M4 and two M5 sized thru holes for mounting purposes. Applications Strain measurement Digital and Analog Electronic Weighing scales Weight Balancing Machines Technical Specifications Comprehensive error : 0.02% F.S Sensitivity :1.0 0.1mv / v Nonlinearity: 0.02% F.S Hysteresis: 0.02% F.S Importance of :0.02% F.S Creep: 0.02% F.S/10min 0:00 Output :2% F.S Input Impedance :405 10 Output impedance :350 3 Insulation resistance :5000M (100VDC) Excitation voltage :5VDC ~ 12VDC Temperature compensation range :10 ~ 40 Operating temperature range: -20 ~ 60 Temperature effect on zero 0.03% F.S/10 Temmp.effect 0.02% F.S/10 Safe overload 120% Ultimate Overload 150% Protection class IP65 Dimensions: 150mm (L), 24mm (W), 38mm (H) Cable Length: ~ 1 meter Weight : 320g Pinouts Red : E Black: E- White: S Green: S- Shield: GND Documents and Downloads Link to Getting Started with load cells Load cell hookup guide Package Includes 1x Load Cell – Straight Bar 200kg
