XH-M452 Digital Temperature and Humidity 12VDC Controller

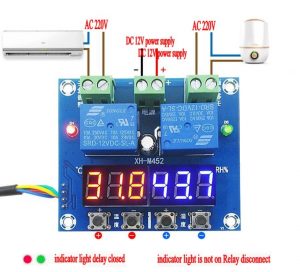

Description XH-M452 Digital Temperature and Humidity 12vdc Controller is capable of maintaining humidity and temperature. The module works at 12VDC power. Module has separte 220VAC  10A Relay outputs for Heater and Humidity Generator (External Fan, and Humidifier) Technical Specifications Model: XH-M452 Style:Exposed PCB Display Type:Digital power supply :DC 12V Temperature measurement range:-40~120℃ Humidity range：0~100%RH Control precision：0.1℃  0.1%RH Test probe：Integrated sensor Test Probe cable length: ~90cm / 3-feet Output:10A delay Size: 65*55*28mm Applications Indoor Room Temperature and Humidity Control Humidity and Temperature controller for Controlled Temperature sheds Food and Beverage temperature and Humidity controller Temperature and Humidity controller for Health Care applications Temperature and Humidity controller for Incubators Operating Instructions Temperature control 1. Set the temperature ：Normal display mode, long press the key for 3 seconds, start temperature numerical flashing, press the / – key setting values, wrong operation after 5 seconds, automatically return to detect temperature display 2. Set the temperature – ：Normal display mode, long press – button for 3 seconds, stop numerical flashing temperature, press the / – key set value 3. Restore the factory Settings :At the same time long press temperature, and humidity key for 3 seconds, digital display, 888, 888 Set the start temperature:Long press the key, start the flashing temperature, set start temperature by / – key set Stop temperature: long press – button, stop flashing temperature, set stop temperature by / – key Humidity Control Set to start humidity: long press the key, start the humidity value flashing, set by / – key launch humidity value Set stop humidity: long press – to stop humidity value, set by / – key to stop the humidity value Fault code: display LLL mean the sensor fault display HHH mean Test temperature exceed the range of measurement Package Includes 1x ZFX-ST3022 Digital Temperature and Humidity 220VAC Controller 1x Temperature Sensor Probe – AM2301
