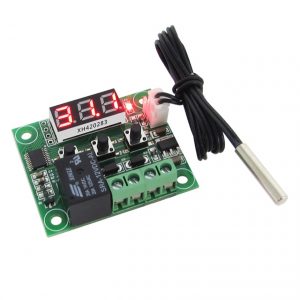

W1209 Digital Temperature Control Switch with Sensor

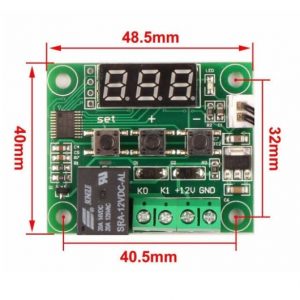

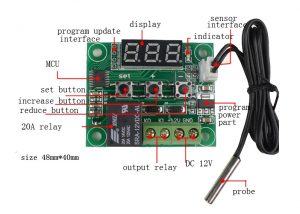

Description WS1209 Digital Temperature Control Switch is a programmable themrostat. The same module can be used in both  controlling / maintaining Cold and Hot temperatures. Parameter 0 can be set to either Hot or Cold Control setting. The relay module is based on a microcontroller (MCU) and has 7 user configurable parameters accessible using 3 push buttons. Features Precise Temperature Control upto 0.1C Fast Acting Control of 0.5 seconds response time With Water proof sensor LED Display for Temperature, settings and warning LED Relay Status Indicator Output Relay can be used with both AC and DC circuits Applications Indoor Room Temperature Control Aquarium temperature controller Temperature controller for Controlled Temperature sheds Food and Beverage temperature controller Temperature controller for Health Care applications Technical Specifications Temperature range :-50-110 ℃ Dimensions: 48.5 * 40mm Temperature control mode: ON / OFF Resolution：When temperature is 0.1℃, the resolution is -9.9~99.9, other temperature segment is 1℃ Control accuracy: 0.1 ℃ Hysteresis accuracy: 0.1℃ Refresh rate: 0.5S High temperature protection： 0-110℃ Supply voltage: DC 12V Static current: ≤ 35MA, attract current ≤ 65MA Operating voltage: DC 12V Output Relay Specifications: Max Current: 20A @ 110VAC, 10A @ 220VAC or 20A @ 14VDC Operating Voltage: 115VAC, 220VAC, 50VDC Measurement input: NTC (10K 0.5%) Waterproof Sensor Environmental requirements: -10 ~ 60 ℃ ，Humidity 20% -85% Probe Length: ~31cm / 12.2in (including thermocouple and wire) Parameter list Parameter Settings Long press SET will take the system in parameter settings menu SN Code Description Range Default Value 1 P0 Heating / Cooling C/H C 2 P1 Hysteresis 0.15 – 15C 2C 3 P2 Upper Limit 110C 110C 4 P3 Lower Limit -50C -50C 5 P4 Correction -7C to 7C 0C 6 P5 Delay Start time 0-10 min 0 min 7 P6 High Temp Alarm 0-110C OFF Long press – will reset to default values Documents and Downloads Product Review Video Package Includes 1x W1209 Digital Temperature Control Switch 1x Temperature Sensor Probe W1209 LED Thermostat Temperature Controller for Incubators, aquarium, water heater, room temperature control in Pakistan on cash on delivery. Buy online in Pakistan
