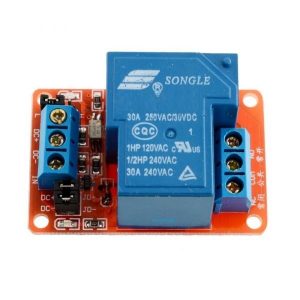

Description This product is a 1-channel opto-isolated relay module board with LED indicators, It can be controlled by microcontrollers such as Arduino, AVR, PIC, ARM any other microcontroller operating at 12V. Features Imported high quality double sided compact PCB. Opto-Isolated input Relay Coil Operating Voltage: 12v Relay output maximum contact is AC250V 30A and DC30V 30A. Relay Power and Status LED Indicators Technical Specifications Relay Coil Operating Voltage:12V Relay Trigger Input Voltage: 3V-12V Static current: 5mA Coil Energize State Current: 70mA Trigger Input current: 2-4mA Contact Rating (Maximum): 30A Channels: 1 channel Optical Isolation: Yes Input Polarity: Configureable to High or Low levels using Jumper Power Supply indicator LED : Yes Relay Status indicator LED : Yes Dimensions: approx.:50mm*33mm*24mm Item weight: 35g Package Includes 1x Opto-isolated 1 Channel 12V 30A Relay Module
