Non Opto-isolated 1 Channel 12V 10A Relay Module
BOA BALL PEN
Product Code: TPC551905
A high gloss twist action ball pen, made in Germany using climate-neutral production and 100% green electricity. 20% of the plastic used to produce this product is made from recycled ABS plastic! This promotional pen is made to order and you can customise the individual parts of the pen. You can pick between a wide range of 14 different standard colours and from 3000pcs you can even pantone match the parts! This twist action ball pen is sure to stand out, not only with your colour combinations, but also the sleek and precise design will catch the attention of anyone. Supplied with a quality Silktech refill, made of recycled PP material, that is guaranteed to have a write out length of 3000m and can be supplied in blue or black ink. A combination of precise design and engineering oozes quality and ensures a writing experience like no other. Get in touch today and order now!

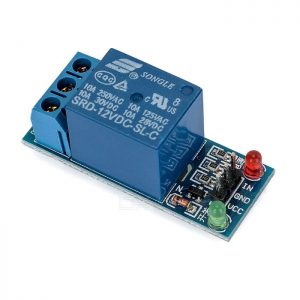

Description Description This product is a 1-channel 12V/10A opto-isolated relay module board with LED indicators, It can be controlled by microcontrollers such as Arduino, AVR, PIC, ARM any other microcontroller operating at 5V. Features Imported high quality double sided compact PCB. Opto-Isolated input This relay module is 5V active low. It is an 1-channel relay interface board, which can be controlled directly by a wide range of microcontrollers such as Arduino, AVR, PIC, ARM, PLC, etc. It is also able to control various appliances and other equipment with large current. Relay output maximum contact is AC250V 10A and DC30V 10A. Standard interface can be directly connected with microcontrollers. Working status indicator lights are conducive to the safe use. Widely used for all MCU control, industrial sector, PLC control, smart home control. Technical Specifications TTL Control Signal: 5V-12V (IN) Relay Voltage: 12V (VCC) Channels: 1 channel Optical Isolation: No Input Type: Active Low (Low Logic turns relay ON) Power supply indicator LED: Yes Control indicator LED: Yes Item size: approx. (L,W,H) 5.3 * 2.8 * 1.8cm Item weight: 16g Pinout Please see image in product gallery. Package Includes 1x Non Opto-isolated 1 Channel 12V 10A Relay Module
Product Size
146 x 15 mm
Additional Information
Price includes a one colour print to one position.
Lead Times
4 weeks from approval of artwork
Colours
Cyan,Light Blue,Mid Blue,Dark Blue,Dark Pink,Black,Dark Red,Dark Orange,Mid Orange,Yellow,White,Dark Grey,Cool Grey,Dark Green,Mid Green,Light Green
Carton Quantity
500
Carton Dimension
36 x 36 x 26 cm
No Stock Information is currently available, please contact sales for more information.
Pad/Screen Artwork
Pad/Screen Print Area
40 x 20 mm (barrel) 35 x 6 mm (clip)
No of Spot Colours
4
Notes
Price includes a one colour print to one position.
Same Day Service
100 - 1 Colour
Same 1 Day Service
250 - 1 Colour
Same 2 Day Service
500 - 1 Colour
