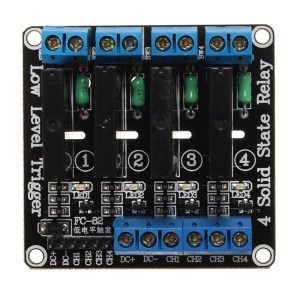

4 Channel OMRON G3MB-202P Solid State Relay (SSR) Module

Description 4 Channel OMRON G3MB-202P Solid State Relay (SSR) Module Features Model Number: Z0575 Led indicator for each relay Usage: General Purpose PCB Type: FR-4 Fiber glass PCB ( Double Layer ).   Technical Specifications Input control signal voltage: 0V – 0.5V Low stage (SSR is OFF), 0.5V – 2.5V (unknown state). 2.5V – 20V High state (SSR is ON). SSR Output (each channel): Load voltage range: 75 to 264V AC (50/60Hz). Load current: 0.1A to 2A Power supply: 5VDC / 160mA all 8x channel ON. (20mA each) PCB thickness: 1.6mm. Size: 106 mmx 56 mm x 25 mm (L x W x H) SSR Specifications: Manufacturer: OMRON Part number: G3MB-202P, 5V version. Isolation: Phototriac. Zero cross: Yes. Rated output load: 2A at 100 to 240V AC.(50/60Hz). Pinouts Input section: DC : positive power supply (relay voltage power supply) DC-: connect power negative CH1: 1 signal to trigger the end of the relay module (low level trigger valid) CH2: 2-way relay module signal triggering end (low level trigger valid) CH3: 3 relay module signal triggering end (low level trigger valid) CH4: 4-channel relay module signal triggering end (low level trigger valid) Documents and Downloads Omron G3MB-202P Solid State Relay (SSR) Datasheet Package Includes 1x 4 Channel OMRON G3MB-202P Solid State Relay (SSR) Module
