RIGOL 100MHZ Dual Channel Digital Storage Oscilloscope – DS1102E | ON DEMAND

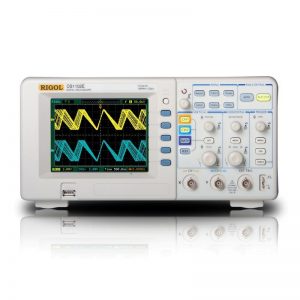

Description The Rigol DS1102E is a high quality two channel digital storage oscilloscope. It offers a real-time sample rate of up to 1 GSa/s and a bandwidth of up to 100 MHz. It not only has compact design and 64K TFT color LCD, but also powerful functions: Up to 1M memory depth, with Ultrazoom function, enabling users to observe details while surveying the whole waveform; 7 trigger modes, adjustable trigger sensitivity, USB Host to support USB flash memory and USB printer, and other traditional functions of RIGOL oscilloscopes. The quality of the Rigol Oscilloscopes is comparable to Agilent and Tektronix oscilloscopes. Features Ultrazoom : You can sample up to 1 million measurement points with this oscilloscope. Easily zoom in and scroll within the signal. Survey macroscopically, observe microscopically. Automatically and Cursor Measure: This oscilloscope series provides 20 types of wave parameters for automatically measuring, which contains 10 Voltage and 10 Time parameters. Adjustable Trigger Sensitivity: With the Rigol oscilloscopes you have the ability to filter noise from the signal avoids false triggers. Alternate Trigger: Provides a true dual timebase display. Slope Trigger: Triggers on the signals rise time or fall time is user defined. Rising and Falling Edge Trigger: Mainly used to view eye-diagrams normally only available in more advanced DSO’s. Pass / Fail Test: The Pass/Fail function monitors the changes of signals by comparing whether the input signal is within the pre-defined mask. The testing results not only can be displayed on screen or output by isolated pass/fail port, but also can be alarmed according to turn on system sound. FFT (Fast Fourier Transformation): The FFT function provides spectrum analysis function for users. Supported FFT windows: Rectangle, Hanning, Hamming, Blackman. File System and USB Stick Support: The device supports an easy-to-use file system. It allows for both USB flash drive and local file storage. PictBridge Certified (Printer Support): You can easily connect a printer to the USB host port of the Rigol oscilloscopes and print out your measurement results. Technical Specifications 2-Channel, 100MHz 5.6″ 64K TFT LCD Screen 1G Sa/s Real-time Sampling Rate 25GSa/s Equivalent Sampling Rate 1Mpts long Memory Depth.  ( Compare this to like scopes with just kb memory vs Mb! ) Edge, Pulse, Video, Slope, Alternative, Pattern and Duration Trigger Functions Digital Filter and Waveform Recorder Functions. Provide 4 types of digital filters: LPF, HPF, BPF, BRF Pass/Fail Function Save and Recall Setup/Waveform/CSV data on USB Flashdrive Save or Print Waveform Image Captures Math operations available to multiple waves On-Screen Menu System Standard configuration interface: USB Device, USB Host ,RS-232 and support USB storage device storage and PictBridge print standards Powerful PC application software UltraScope Support for remote command control Input Voltage – 100-240VAC Documents and Downloads Rigol DS1102E Support page (for detailed tech specs, user manuals, software and driver download) How to Use an Oscilloscope Package Includes 1x Rigol DS1102E Oscilloscope 2 x 1:1/10:1 Probes Power Cable USB Cable UltraScope Software CD User Manual Availability Please consult about availability of this item before placing your order Email: sa***@***********ts.com Call: 0334 666 1248
