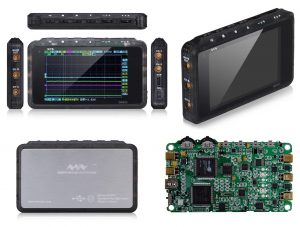

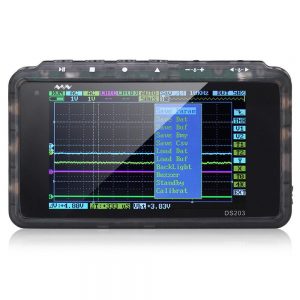

Description  DSO Quad also known as DSO203 is a pocket size 4 channel digital oscilloscope for common electronic engineering tasks. It’s based on ARM cortex M3 (STM32F103VCT6), providing 72MS/s sampling rate with integrated FPGA and high speed ADC. An internal 2MB USB disk can be used to store waveform captures, user applications and to upgrade firmware. Technical Specifications Analog channel * 2 : [CH_A]   [CH_B] ; Digital channel * 2 :   [CH_C]   [CH_D] ; Vertical Scale: 20mV-10V/div (x1 probe); Vertical solution: 8 – bit ; Input coupling: AC/DC ; Max input voltage: 80Vpp (x2 probe); Storage: 4K per channel Software trigger type: edge, pulse, level (to be added) Hardware trigger type: edge Trigger source: CH1/CH2/EXT Test Signal generator: 10Hz to 1Mhz Storage: internal 8MB USB disk Auto measure: Vmax, Vmin, Vpp, Vavr, Vrms, Freq, Period, Pulse, Duty Cursor measurement: Level, Voltage Display mode: CH1, CH2, EXT, CH1 CH2, CH1-CH2, CH1*CH2 Sampling mode: real time Sampling rate: 1KSa/s – 72MSa/S Power: Li-ion battery Dimension: 98 x 60 x 14.5 mm    3.9 x 2.4 x 0.6 inch Weight: 80g (without battery) Package Includes 1 x SainSmart DSO203/Quad with Built-in Rechargeable battery 2 x mcx Oscilloscope probes Availability [!] The item is not in stock but can be delivered to customer on demand. The lead time for this product is 10 – 15 working days. Please contact Art of Circuits Sales after placing your order: Email: sa***@***********ts.com Call: 0334 666 1248
