TP4056-1A Micro USB Li-ION Battery Charger Module with Protection
BOA BALL PEN
Product Code: TPC551905
A high gloss twist action ball pen, made in Germany using climate-neutral production and 100% green electricity. 20% of the plastic used to produce this product is made from recycled ABS plastic! This promotional pen is made to order and you can customise the individual parts of the pen. You can pick between a wide range of 14 different standard colours and from 3000pcs you can even pantone match the parts! This twist action ball pen is sure to stand out, not only with your colour combinations, but also the sleek and precise design will catch the attention of anyone. Supplied with a quality Silktech refill, made of recycled PP material, that is guaranteed to have a write out length of 3000m and can be supplied in blue or black ink. A combination of precise design and engineering oozes quality and ensures a writing experience like no other. Get in touch today and order now!

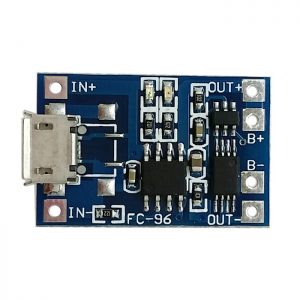

Description This tiny module is perfect for charging single cell 3.7V 1 Ah or higher LiPo cells such as 16550s that do not have their own protection circuit. Based around the TP4056 charger IC and DW01 Deep Drain Battery Protection IC this module offers 1A charge current. The module cuts off charging current when finished. Furthermore when the battery voltage drops below 2.4V the protection IC will switch the load off to protect the cell from running at too low of a voltage – and also protects against over-voltage and reverse polarity connection (it will usually destroy itself instead of the battery) however please check you have it connected correctly the first time. Features Under Voltage Cut off / Deep Drain Protection Over Current Protection Adjustable Current Limit through R-Prog Over-voltage charging protection Usb Micro Connector (with more commonly available usb cables) LED Status Indicator for Charging / Full charge status monitoring Technical Specifications Module Name: Rechargeable lithium battery module Method: linear charge 1% Charging current: 1A Adjustable (Through 1.2k R3 RPROG Resistor) Charge Accuracy: 1.5% Input voltage: 4.5V-5.5V Full charge voltage: 4.2V Over discharge / Deep Drain protection voltage: 2.5V Over-current protection: 3A Charging input interface: Micro USB Working temperature: -10 Degree to 85 Degree Polarity Reversal: Not Allowed Weight: 1.7g Dimensions: 28 * 17 * 1.1mm Current Regulation Chart RPROG (k) IBAT (mA) 30 50 20 70 10 130 5 250 4 300 3 400 2 580 1.66 690 1.5 780 1.33 900 1.2 1000 How to Use the Module Connect micro USB cable for power, or 5V DC to pads marked IN and IN- on left-hand side of the module Connect cell to charge to B /B- pads on right-hand side of module A load (something for the battery to power) can be connected to the OUT /OUT- pads on the right-hand side Important! Disconnect load when charging The Red LED indicates charging in progress, Green LED indicates charging has finished. Never charge your battery at a rate greater than 1C. Related Documents TP4056 Datasheet DW01 Protection IC Datasheet 8205A Dual Mosfet Datasheet Youtube video review Package Includes 1x TP4056-1A Micro USB Li-ION Battery Charger Module with Protection (Tested and QC-OK) Art of Circuits test all of the battery charger modules. Buy these battery charger modules with peace of your mind.
Product Size
146 x 15 mm
Additional Information
Price includes a one colour print to one position.
Lead Times
4 weeks from approval of artwork
Colours
Cyan,Light Blue,Mid Blue,Dark Blue,Dark Pink,Black,Dark Red,Dark Orange,Mid Orange,Yellow,White,Dark Grey,Cool Grey,Dark Green,Mid Green,Light Green
Carton Quantity
500
Carton Dimension
36 x 36 x 26 cm
No Stock Information is currently available, please contact sales for more information.
Pad/Screen Artwork
Pad/Screen Print Area
40 x 20 mm (barrel) 35 x 6 mm (clip)
No of Spot Colours
4
Notes
Price includes a one colour print to one position.
Same Day Service
100 - 1 Colour
Same 1 Day Service
250 - 1 Colour
Same 2 Day Service
500 - 1 Colour
