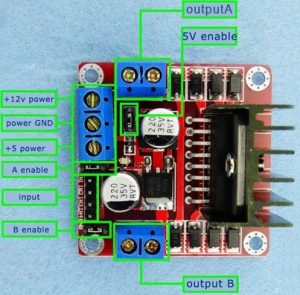

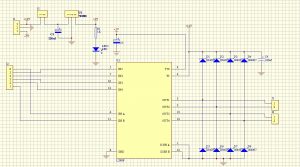

Description Description L298N DC Motor Driver Module Robot Dual H Bridge for Arduino PIC AVR Specifications Driver: L298N Dual H Bridge DC Motor Driver IC The terminal supply area of driven part Vs: 5 V ~ 35 V; such as the need to take power within the board, the supply area Vs: 7V ~ 35V The peak current of driven part Io: 2A the terminal supply of area the logical part Vss: 5 V ~ 7 V (can take power within the board 5 V) the operating current range of the logical part : 0 ~ 36mA control signal input voltage range: Low:-0.3V ≤ Vin ≤ 1.5V High: 2.3V ≤ Vin ≤ Vss enable signal input voltage range: Low: -0.3 ≤ Vin ≤ 1.5V (control signal is invalid) High: 2.3V ≤ Vin ≤ Vss (control signal active) Maximum power consumption: 20W (when the temperature T = 75 °C) Storage temperature: -25 °C ~ 130 °C Driver Board Size: 55mm * 49mm * 33mm (with fixed copper pillar and the heat sink height) Driver Board Weight: 33g Other Extensions: control of direction indicators, the logic part of the plate to take power interface. Related Documents Datasheet Example Schematic: Arduino Uno with L298N Motor Driver Module Sample Code: Arduino Uno interfaced with L298N Motor Driver Module Arduino Library: A clean implementation Arduino Library for L298N module Example of Parallel L298N channels for higher current Package Includes 1x L298N Module
