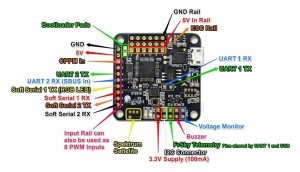

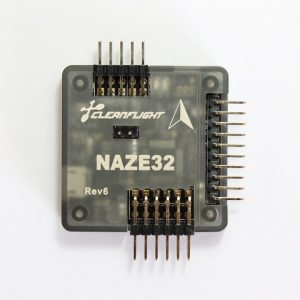

Description Designed for serious quad racers and freestyle maniacs, the Naze32 flight controller is undeniably the most used, recognized and supported flight controller in the scene today. With a 32bit ST micro processor and a host of equally impressive sensors, this Rev6 version comes with 6 DOF Sensors (MPU6500). The 6 DOF, version has 16Mbit onboard SPI flash. This board also comes with angled header pins and is configurable with either Cleanflight or Betaflight firmware via the onboard USB connector. [!] Note: Customer may need to install / upgrade Betaflight or Cleanflight to latest version before use. Features USB on right side PPM/PWM input as through-hole Flexible motor outputs, support various airframe types: Quad/Hexa/Tri/Bi/Y4/Y6/Octo/Camera Gimbal. (Default is Quad-X) Up to 8 ch RC input – supports standard receivers (PWM), PPM Sum receiver (FrSky, etc), or Spektrum Satellite receivers. Built in FrSky telemetry Inverter Battery voltage monitoring Modern 32-bit processor running at 3.3V/72MHz (STM32F103CB). 3.3V, I2C on standard-size headers Built-in SBUS Inverter Spectrum satellite interface Sonar pads w/resistors added for direct connection to 5V sonar Technical Specifications Dimensions: 36×36 mm (30.5mm Mounting) Weight: 5.3 grams (no headers, 7.3 grams with) Input voltage: Max 16V on input rail and up to 35V 6s on the voltage sense line On-board Sensors: IMU: MPU6500 (3Axis Gyro 3Axis Accelerometer) Barometer: Not Installed Magnetometer / Compass: Not Installed Documents and Download Cleanflight google chrome app Detailed review of Naze32 Rev6 flight controller board Naze32 Rev6 User Manual Naze32 Rev6 Setup guide on Youtube Naze 32 versions explained – read here Package Includes Naze 32 Rev6 6DOF board – Assembled and Installed in Plastic Case (Tested and QC-OK) 1 x RC Breakout cable
