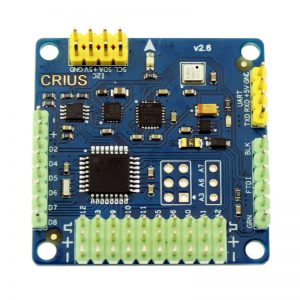

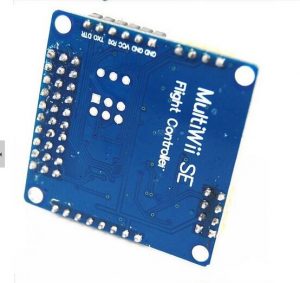

MultiWii SE V2.6 Multi Copter 4 6 8 Axis Main Flight Control Board with 10-DOF Sensors
$65.63
$123.38

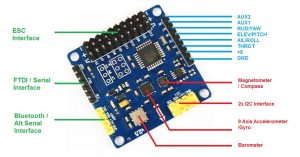

Description The Multi Wii SE 2.6 flight controller board (is based and comes pre-programmed with the open source MultiWii flight controller system. This board is able to control various radio control aircraft including quad, hex, and octocopter designs. Its excellent stability allows for fully autonomous flight with FPV or any kind acrobatics. The board includes a broad array of sensors consisting of a triple axis accelerometer, triple axis gyroscope, triple axis magnetometer (compass), and a barometer. Header pins for allow convenient interface to an RC receiver, ESC’s, and servo’s. Additionally there are also serial and I2C interfaces to allow add-ons such as FTDI USB interface, Bluetooth, GPS*, and OLED/LCD displays. The board is also fully compatible with the MultiWii configuration software and Android MultiWii Ez app (via Bluetooth) providing wireless monitoring and control in flight. Technical Specifications Small size,35x35mm mounting holes 6 PWM input channels for standard receiver or PPM SUM receiver Up to 8-axis motor output Supported 2-axis gimbal and auto trigger control FTDI/UART port for upload firmware, debug, Bluetooth module or LCD display I2C port for extend sensor, I2C LCD/OLED display or I2C-GPS NAV board for GPS and Sonar Ultra low noise 3.3V LDO voltage regulator ATMEGA328P Microcontroller MPU6050C 6 axis gyro/accel with Motion Processing Unit HMC5883L 3-axis digital magnetometer BMP085 digital pressure sensor PCA9306DP1 logic level converter Dimension: 40mmX40mm Height: 11.6mm Weight: 9.3g Hole diameter: 3.1mm Flight Mode One of the following basic mode Acro Level Alt Hold Head Lock Optional mode HeadFree (CareFree) GPS Hold (Need GPS receiver I2C-GPS NAV Board) GPS Return to home position (Need GPS receiver I2C-GPS NAV Board) Related Links MultiWii Control Software from multiwii MultiWii Control Software from EOSBANDI MultiWii Simple GUI Windows Software from RC Groups Package Includes 1 x MWC MultiWii SE v2.6 Flight Controller (Tested and QC-OK) 1 x Set of Cable
