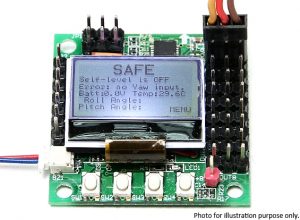

KK2.15 Mini Flight Controller with Graphic Display and Protective Case

Description The KK-mini is packing all the same power, but with a new mighty-mini form factor. Good thing about KK2 flight controller is that in field you do not need to carry your PC to program these flight controller. The KK2 flight controllers have High Pixel Density Graphic Display that can let you see settings and program all settings right on the controller without requiring you to interface the controller with external computer. The KK-Mini is the next Big/Small evolution of the first generation KK flight control boards. The KK-Mini is based on the KK2.1.5 architecture and has all the same inputs and outputs as well as the full functionality of its big brother. The new 36mm designed was adapted to fit the needs of the new mini market, but don’t let its size fool you as it’s just as much at home in any size multi-rotor. The KK mini still utilizes a built in GUI using a hi-res mini LCD and 4 micro buttons for the same great KK experience. It was engineered from the ground up to bring multi-rotor flight to everyone, not just the experts. A host of multi-rotor craft types are pre-installed, simply select your craft type, check motor layout/propeller direction, calibrate your ESCs and radio and you’re ready to go! All of which is done with easy to follow on screen prompts! The original KK gyro system has been updated to an incredibly sensitive 6050 MPU system, making this the most stable KK board ever and allowing for the addition of an auto-level function. At the heart of the KK-Mini is an Atmel Mega644PA 8-bit AVR RISC-based microcontroller with 64k of memory. An additional polarity protected header has been added for voltage detection, so no need for on-board soldering. A handy piezo buzzer is also included for audio warning when activating and deactivating the board. The KK-Mini added polarity protection to the voltage sense header and on-board buzzer. The voltage sense line has been updated for better accuracy. If you’re new to multi-rotor flight or have been unsure about how to setup a KK board, then the KK-Mini was built for you. The 6 Pin USBasp AVR programming interface ensures future software updates will be quick and easy. Technical Specifications Size: 36x36x11.5mm (mounting holes 30.5×30.5mm) Weight: 8.6g IC: Atmega644 PA Gyro/Acc: 6050MPU InvenSense Inc. Temperature Sensor: Yes Buzzer Output: Yes Auto-level: Yes Input Voltage: 4.8-6.0V AVR interface: standard 6 pin. Signal from Receiver: 1520us (5 channels) Signal to ESC: 1520us LCD size: 24*18mm Mini buttons size:Four 3.3*4.2mm Voltage sensor: One red positive pin header for. Input rail: Single row 2.54mm pitch pin header for input signal Firmware Specifications Version: 1.6 Pre-installed firmware. Dualcopter Tricopter Y6 Quadcopter Quadcopter X Hexcopter Hexcopter X Octocopter Octocopter X X8 X8 X H8 H6 V8 V6 Singlecopter 2M 2S Singlecopter 1M 4S Custom Mix via the “Mixer Editor” option [!] Notes It is all ways recommended to update to the latest software version as part of your initial setup.(This is different than v1. 6 for KK2.0) The KK-Mini uses the same firmware as the KK2.1~2.1.5 series Documents and Downloads KK2.1 & KK2.1.5 Instruction Manual KK 2.1 Multi-Rotor Control Board User Guide (Some important Information is still valid for kk2.15) Package Includes 1 x Mini KK Flight Control Board 1 x Buzzer 1 x Plastic Shell
