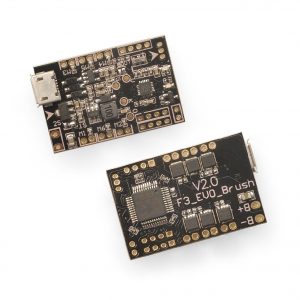

F3 EVO Brushed V2.0 Flight Controller 6DOF with 32Bit CPU

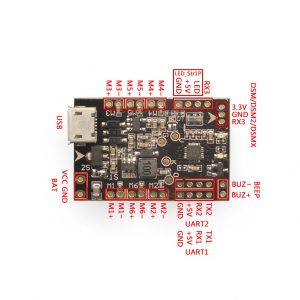

Description F3 EVO Brushed Flight Controller gives you all the features in a small size and is designed for micro size quads with brushed motors. Dedicated Open source Cleanflight software ensures that you are always updated. Features The V2.0 supports 6 rotors 32-bit brush flight controller based on SP Racing F3 EVO firmware Supports 1S ( 4.2V ) and 2S ( 8.4V ) power supply, 2S can bring you more breathtaking flight Independent design of the circuit structure, pressure reduction technology – whether with 1S or 2S power input, there is 5V output from UART1 / 2 and 3.3V from UART3 STM32F303CCT6 MPU6500, the F3 advanced hardware platform guarantees more stable flight With a large-current NMOS transistors, the operating current reaches more than 10A. Each machine is equipped with freewheeling diodes Supports input signal of PPM, SBUS, DSM receiver Has battery voltage detection and buzzer interface Compatible with almost all coreless motors, including the 1020 motor Technical Specifications Dimension: 22 x 32.5mm PCB Thickness: 1.2mm Weight: 3g Documents and Downloads F3 EVO V2.0 Brushed Manual Guide for flashing Beta Flight into F3EVO V2, Please read here Package Includes 1x F3 EVO Brushed V2.0 Flight Controller 6DOF with 32Bit CPU (Tested by Art of Circuits / QC-OK) 1x 3M Tape 1x Battery Connector
