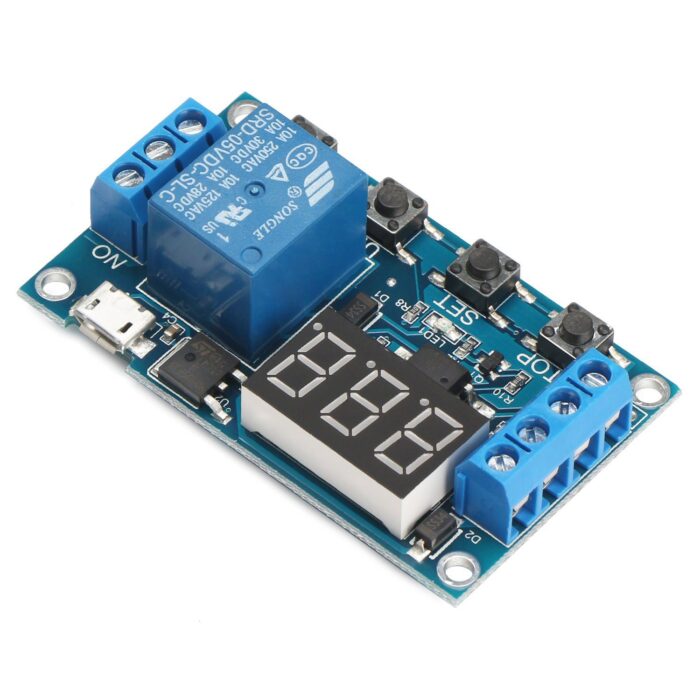

12V Multifunction 1 Channel Relay On-Off Timer Delay Switch   This 12V multifunctional relay is a digital display LED home automation delay timer control switch module. the operating voltages are 6 to 30V. it supports a micro USB of a 5V power supply. this module can control the device within DC 30V 5A or AC 220V 5A. this multifunctional can be applied to many fields. and it has a wide range of applications. Get every type of sensor, module, drone frames, and motors at Pakistan’s best online store epro.pk Features of 12V Multifunction 1 Channel Relay Timer:   it supports a wide voltage power supply of 6 to 30V. it supports a micro USB 5V power supply. it is really easy to use. this interface is clean there is no mess of wires. it is also powerful and easy to understand. this module also had sleeping mode. this sleeping mode will be activated when there is no activity performed within 5 minutes. the OP, CL, LOP parameters can be set differently. these parameters are not dependent on each other. if the power is turned off then all the settings will be stored automatically. Product Parameters of 12V Multifunction 1 Channel Relay:   Operating voltages are 6-30V, it supports a micro USB 5.0V power supply. Trigger signal source is  Active-high (3.0V-24V), it has optocoupler isolation, it can improve the system’s anti-jamming capability (customers can also shorting common ground). Output capability that it Can control the device within DC 30V 5A or AC 220V 5A. Quiescent current is 20mA; Operating current is 50mA Service life is more than 10 million times Working temperature is almost -40°c ~ 85 °c Dimensions are 62×38×17mm.   Related Links:   Different Types of Relays How to setting 12v timer relay || Incubator timer relay Package Included: One Piece of 12V Multi-function 1 Channel Relay Timer in Pakistan
