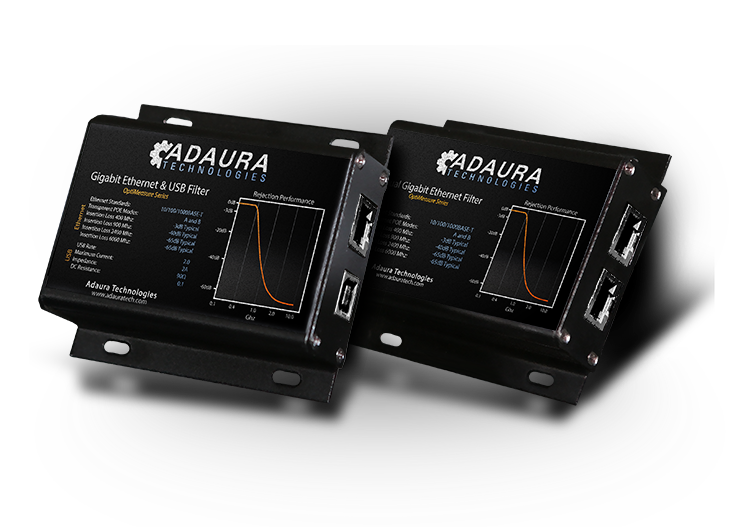

Description Description Specifications Downloads Mechanical Design Request Quote Back to top Key Features Provides 10/100/1000 Mbps Ethernet pass-through with RF rejection. Four internal differential filters for each pair of data lines. (GigE USB) Provides one port 10/100/1000 Mbps Ethernet pass-through and one port of USB 2.0 with RF isolation. (GigE USB) One internal differential filter for USB 2.0 data and a low pass filter for USB 5V power. Compatible with POE A and B devices. Only one cut out required for dual Ethernet connectors installation. Simple four mounting screws for chassis mounting.DescriptionRF leakage through Ethernet and USB cables can destroy even the best RF enclosures and chambers. The need for filtering in the ever congested RF environment requires special filters that can pass USB 2.0 and 10/100/1000 Mbps Ethernet signals and filter out unwanted higher frequencies such as cellular and WiFi. The Adaura Technologies USB/Gigabit Filters provide one GigE and one USB 2.0 pass-through connections while filtering out other RF up to 8GHz. It has a small form factor to allow easy installation. It is a most cost effective solution for a clean chamber set up. In a typical chamber, WiFi signals are reduced to <-100dBm with this filter installed.Technical SpecificationsSpecifications Dual Gigabit Ethernet Dual Gigabit pass-through Number of Gigabit pass-through 2 Connectors Shielded RJ45 Data lines 4 pairs Insertion Loss 400MHz -3dB typical Insertion Loss 900MHz -40dB typical Insertion Loss 2400MHz -65dB typical Insertion Loss 6000MHz -65dB typical POE Transparent A and B mode Specifications USB 2.0 Gigabit Ethernet USB2.0 & Gigabit Ethernet Number of Gigabit pass-through pairs 1 Number of USB2.0 pass-through pairs 1 Connectors Shielded RJ45, USB Type A, USB Type B Data lines 4 pairs Insertion Loss 400MHz -3dB typical Insertion Loss 900MHz -40dB typical Insertion Loss 2400MHz -65dB typical Insertion Loss 6000MHz -65dB typical POE Transparent A and B mode Export Info ECCN #: EAR99 HTS #: 8533.29.0000 DownloadsDatasheet ADCF Anechoic Chamber FiltersMechanical DesignDimensions in (mm)You may also like… Rackmount RF Attenuator $6,775.00 8-Channel 100-8000MHz R4 Series Programmable RF Attenuator $3,675.00 4-Channel 100-8000MHz R4 Series Programmable RF Attenuator $2,700.00 10-Channel Programmable RF Attenuator $5,775.00 – $5,950.00Price range: $5,775.00 through $5,950.00
